Important: This mod requires Wii disassembly, chassis modification, as well as micro soldering. It is highly recommended that you are either experienced with these processes or seek professional services to install this mod.

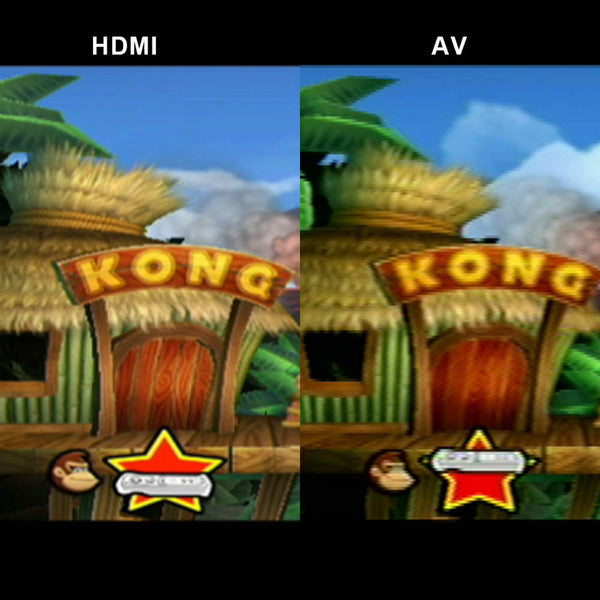

This HDMI kit is a digital to digital HDMI output upgrade for the Nintendo Wii

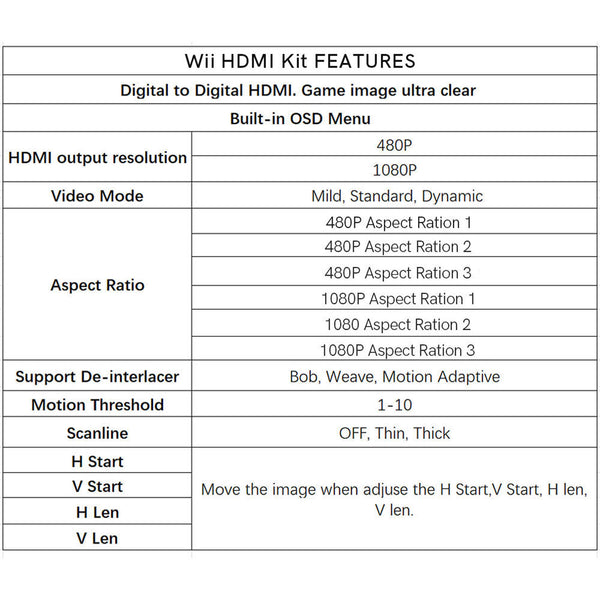

Description:
1. Supports 480P, 1080P HDMI Output

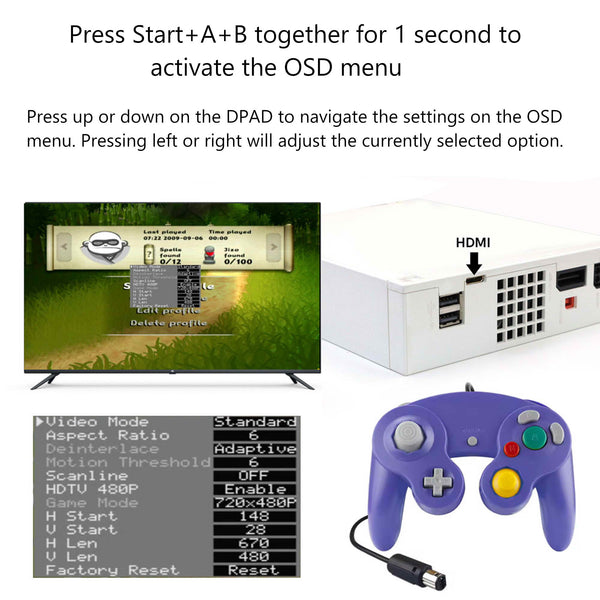

2. Built-in OSD Menu
3. Built in 3 Video Modes. Mild, standard and dynamic
4. Built in 6 Aspect Ratios. Aspect Ratios 1 to 3 are 480P out. While 4 to 6 are 1080P out
5. Deinterlace adjustable. Bob, weave and adaptive
6. Motion thereshold adjustable
7. Image position can be adjustable
Compatible with every Wii console aside from the Wii Mini

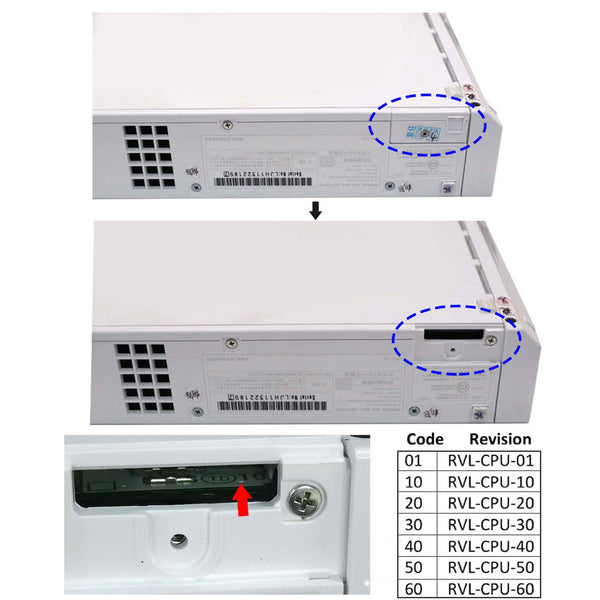

You can find which model motherboard revision you have by looking in the replaceable battery tray
01-30 Wii Install Guide
40-60 Wii Install Guide
