Important: This mod requires PS2 disassembly, chassis modification (if not using no-cut mod), as well as micro soldering. It is highly recommended that you are either experienced with these processes or seek professional services to install this mod.
This HDMI kit is a digital to digital HDMI output upgrade for the original PS2 Slim
Description:
1. Supports 480P, 1080P HDMI Output

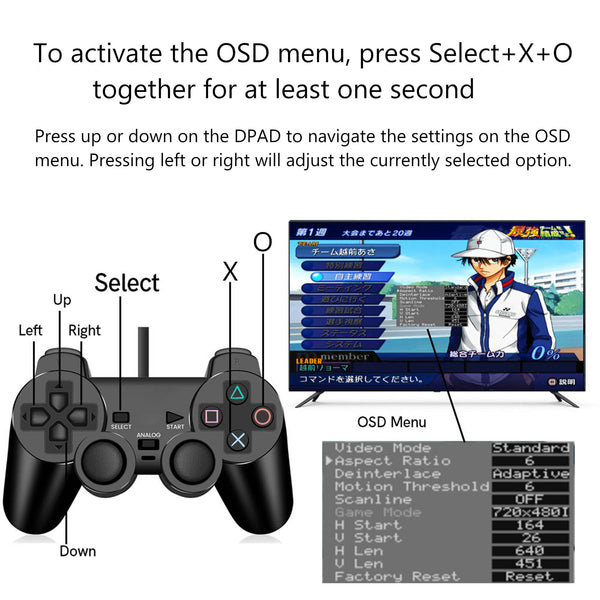

2. Built-in OSD Menu
3. Built in 3 Video Modes. Mild, standard and dynamic
4. Built in 6 Aspect Ratios. Aspect Ratios 1 to 3 are 480P out. While 4 to 6 are 1080P out
5. Deinterlace adjustable. Bob, weave and adaptive
6. Motion thereshold adjustable
Compatible consoles:
All slim motherboards found in 700XX to 7900X are supported.
GH-032-XX (SCPH-700XX)
GH-035-XX (SCPH-700XX)
GH-036-XX (SCPH-750XX)
GH-037-XX (SCPH-750XX)
GH-040-XX (SCPH-750XX)
GH-040-XX (SCPH-750XX)
GH-041-XX (SCPH-770XX)
GH-051-XX (SCPH-770XX)
GH-052-XX (SCPH-770XX)
GH-061-XX (SCPH-7900X)
GH-062-XX (SCPH-7900X)
X's mean numbers 1-9 (Such as SCPH-70006)
You can find the GH model number on the motherboard itself, while you can find the SCPH model number on the shell itself

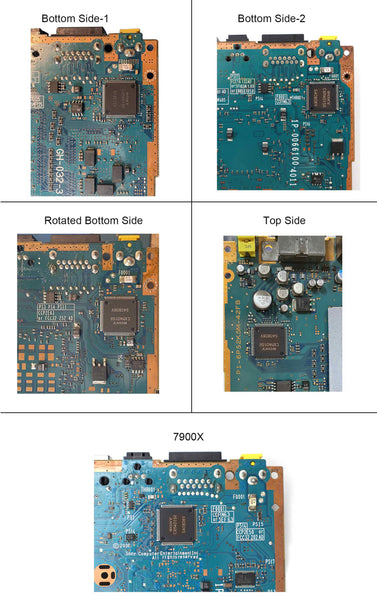

7900X guide, Bottom side 1 guide, Bottom side 2 guide, Rotated bottom side guide, Top side guide.
Includes:
1x PCB board
1x Flex cable
