THERE ARE TWO DIFFERENT LCD SIZES. PLEASE MAKE SURE TO PURCHASE THE CORRECT ONE FOR YOUR SHELL.
Install Guide
The GBA SP IPS MAX is a groundbreaking display kit designed for the Game Boy Advance SP, featuring a 3.2-inch full-laminated IPS screen - the largest ever for GBA SP mods. With a sharp 960×640 resolution and a dedicated customizable logo area, this kit combines modern clarity with personalized style.
Key Features:
3.2" IPS panel with full lamination to reduce glare and dust.
High resolution of 960×640 for crisp, vibrant visuals.
Customizable Logo
Dedicated 960×80 pixel area at the bottom for personal logos.
Upload your own 4-color BMP image via Type-C and Windows software.
Enhanced Gaming Modes
5x GBC Zoom: Play Game Boy Color games with a massively enlarged display.
AGS-101 Color Mode: Switch to classic color tones for an authentic retro feel.

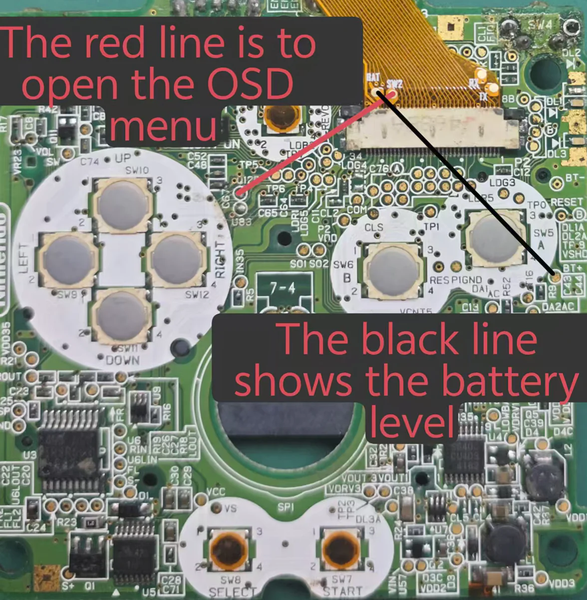

Battery Indicator: Displays real-time power levels when a wire is soldered to the positive terminal.

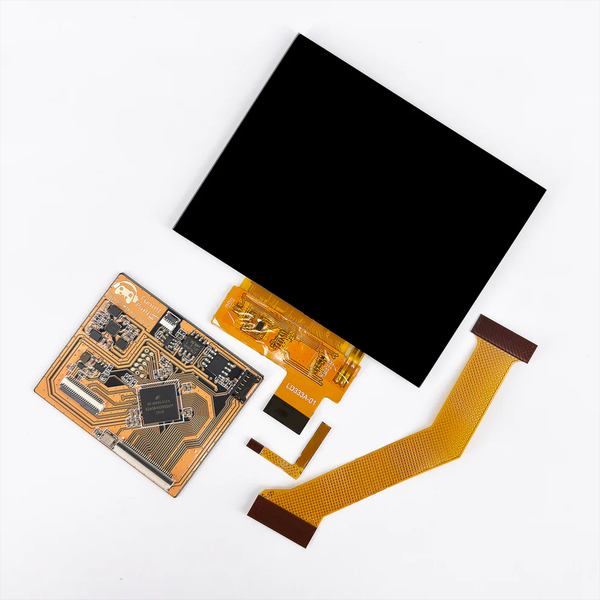

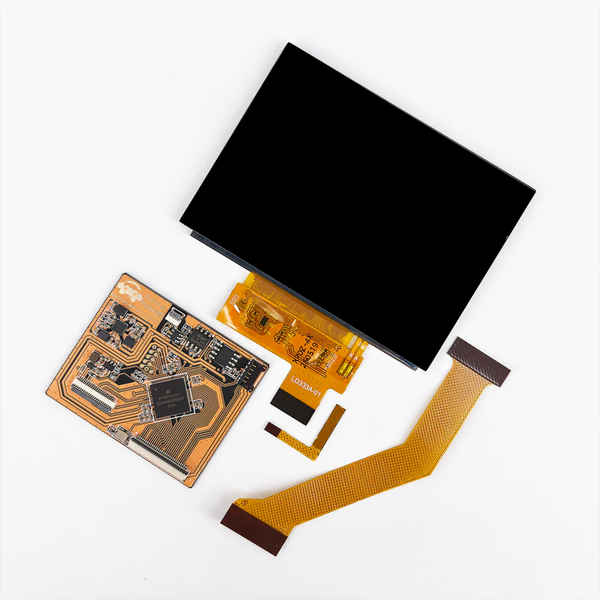

What's Included:
GBA SP IPS MAX fully laminated screen module
Dedicated driver board
Ribbon cable
Touch sensor
Important Notes:
Soldering is required. Basic soldering skill is needed for brightness controls; battery indicator is optional.
Logo Upload: Use the provided Type-C cable and Windows-compatible software to customize your logo.
